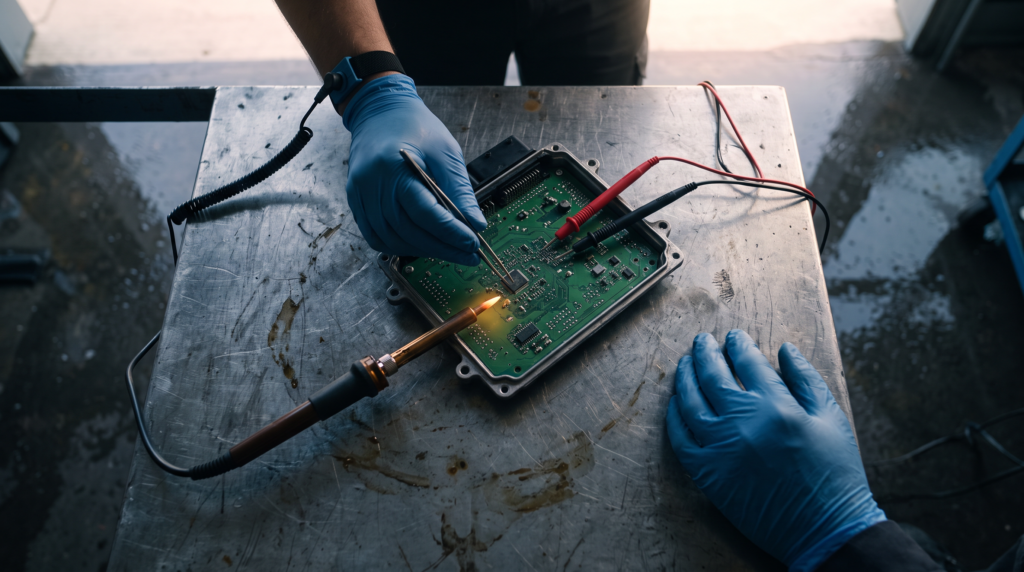

VW ECU Coding for a Replacement or Used Unit

If you have just fitted a new or used engine control unit to a Volkswagen and it will not start, will not talk to a scan tool, or throws immobilizer and component protection faults, the ECU is probably fine. It needs VW ECU coding before it will run. A control unit fresh from the dealer or pulled from a donor car does not know your VIN, your immobilizer data, your gearbox, or your options. Coding is the step that tells the module what car it lives in and lets it speak to everything else on the bus. Skip it and even a flawless ECU stays dead.

This article walks through what the work involves, when it is needed, what goes wrong when it is attempted without the right access, and how much of it can be handled remotely so you never leave your driveway.

What VW ECU Coding Actually Means

Three words trip people up before they even attempt VW ECU coding, so separate them first. Flashing writes firmware onto the processor. Coding sets the configuration bytes that tell an already-flashed module how to act in your exact car: engine variant, transmission type, market, emissions hardware, and which options are fitted. Adaptation then teaches the module live reference values such as throttle angle and steering position.

In practice, VW ECU coding on a replacement unit means doing all three in the right order. On the MQB and MLB platforms behind most modern Volkswagen and Audi models, the engine ECU also has to exchange immobilizer and component protection data with the dashboard and gateway before the engine will crank and keep running. That handshake is exactly the part a basic OBD tool cannot finish.

Why is VAG so strict when an older car let you swap an ECU and drive away? Security. From roughly 2005 on, the group locked engine, transmission, and comfort modules to each other so a stolen part cannot simply be bolted into another car. That anti-theft design protects owners and complicates repairs, and it is the biggest reason VW ECU coding is a specialist job rather than a plug-and-play swap.

When You Need VW ECU Coding

The trigger is almost always a hardware change. The common cases:

• A brand new ECU from the dealer. It arrives blank or in shipping mode, with no VIN, no immobilizer link, and no component protection clearance for your car.
• A used ECU from a breaker or donor vehicle. It still carries the old car’s VIN and immobilizer data, so your immobilizer rejects it on sight.
• A water-damaged, corroded, or lightning-hit module. Once the original is unreadable, a replacement has to be coded from scratch or cloned.
• After a repair that resets or replaces the mainboard. Some rebuilders return a working board that still needs your car’s identity written back in.

In every one of these, the missing step is coding. A no-start after an ECU swap can look identical to a wiring fault, so honest diagnosis matters. Good ECU programming and coding services start by confirming the unit is alive and on the bus before touching a single byte.

The Component Protection Problem on VAG Cars

This is the wall most people hit. Volkswagen Auto Group ties major control units to the car with a security feature called component protection. When you install a used or new module, the gateway sees an unknown serial number and refuses to enable it. The car may crank but not start, or start and stall after a few seconds.

Clearing it is not a local trick. Component protection is validated against VAG’s online servers through a certified access system, the same GeKo online tokens dealers rely on. Without that authenticated channel, no amount of local VW ECU coding will make the module accept your car. This is why component protection removal is often the real job hiding behind a won’t-start complaint, and why a specialist with the right access finishes it in an afternoon instead of chasing ghosts for a week.

For a used unit there is a second route. Instead of adopting the donor ECU’s identity, the original ECU’s data can be copied onto the replacement so the car sees no change at all. Cloning suits cases where the original still reads out cleanly, and it sidesteps some immobilizer work entirely.

What Goes Wrong With DIY VW ECU Coding

Generic OBD apps and pattern tools tempt owners into attempting VW ECU coding at home. Sometimes it works. Often it creates a bigger bill. The usual failures:

• Bricked modules. An interrupted flash, a dropped laptop battery, or the wrong software version can leave the ECU unresponsive and sometimes scrap.
• Immobilizer lockout. Botched immobilizer adaptation can push the cluster into a lock state that needs recovery before anything else works.
• Wrong software or dataset. Loading a file meant for a different engine code or market changes fueling and emissions behavior and can set permanent fault memory.
• Component protection mismatch. Local tools cannot clear it, so the car never runs right no matter how many times the code is rewritten.

Genuine factory-level software such as ODIS, or well-documented aftermarket tools like Ross-Tech VCDS, can read faults and code many modules, but even VCDS cannot perform online component protection on its own. That limit is deliberate, and Volkswagen builds these security layers into the car on purpose. A specialist bridges the gap with authenticated access, not a cracked shortcut.

How VW ECU Coding Works Remotely and In-Person

Here is the honest breakdown of what happens, and what can be done without you traveling.

The process starts with identification. We read the ECU part number, the hardware and software versions, and the VIN, then confirm the correct dataset for your exact build. Next comes the write: firmware if the unit needs it, then the configuration coding that sets engine, gearbox, and options. Then immobilizer adaptation links the ECU to the cluster and key. Finally component protection is cleared through certified online access, and adaptations are reset so idle and throttle settle in.

Most of this runs over the OBD port with a laptop and a pass-through interface. That is the key point. With a supported interface plugged into your car and a stable internet connection, a large share of VW ECU coding can be completed through a remote VAG programming service. You stay on your driveway, the specialist drives the session from their bench, and the tokens and datasets live on their side. Bench work is reserved for cases where a module is truly dead and has to be read or repaired off the car.

A typical remote session needs three things from you: the car parked safely with the battery on a charger, the diagnostic interface connected to the OBD port, and a phone or laptop to stay in contact. Most coding and component protection jobs finish in under two hours once the session starts. The battery charger matters more than people expect, because a voltage drop mid-write is one of the fastest ways to corrupt a module.

What still needs to be in person

Remote is not magic. A physically damaged connector, a module that will not power up, key cutting, or soldering a corroded board all need hands on the car. A good specialist tells you up front which side of that line your job sits on, rather than promising a remote fix and failing halfway.

Why a Specialist Is Worth It

The math is simple. A replacement ECU is expensive, and a second one after a botched flash is worse. VW ECU coding done right the first time protects the part, keeps the immobilizer intact, and returns emissions and drivability to factory spec. Done wrong, it turns a one-hour job into a tow, a new module, and a diagnostic bill.

If your Volkswagen has a fresh, used, or repaired control unit that will not wake up, the fix is VW ECU coding, not guesswork. Confirm the unit is alive, handle the identity and component protection through proper access, and let a specialist carry the risk of the write. That is the difference between a car that starts today and one that sits for a week.
